Malwa Machine Tools (India) Pvt Ltd

We specialize in Metal Cutting Band Saw Machine

About Company Page


Malwa Machine Tools (India) Pvt Ltd Dewas (M.P.) was established in the Since - 1995.The founder of company Mr. R Tiwari.He is a dynamic and well technical person specially with knowledge in Metal Cutting Band Saw Machine.SPM Machine & Circular Saw Machine.Has experience in field 40 Years.The motto of the company is "Complete Customer Satisfaction by delivering the best product at economical price. Read More

Band Saw Machine

Our Products

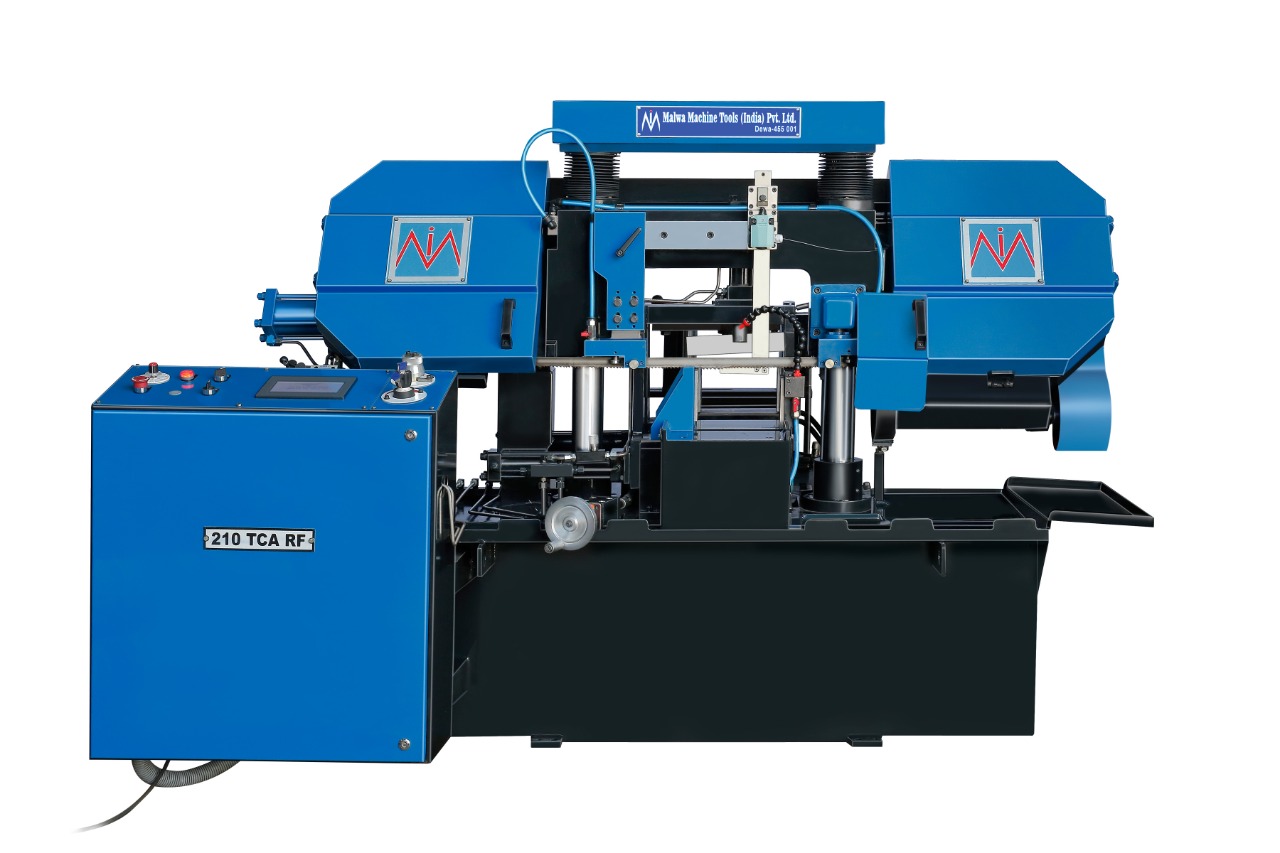

MMT 210 TCA / TCSA

Band Saw Machine

Technical specifications / Cutting Capacity

DIA 210 SQUARE 210x210
CUTTING SPEED 20-100 M/MM BLADE SIZE 4000x27x0.09
BLADE TENSION HYDRAULIC SAW MOTOR 3 HP
HYDRAULIC MOTOR 1.5 HP COOLANT MOTOR 0.16 HP
CHIP CONVEYOR MOTOR 0.50 HP CHIP CLEANING WIRE BRUSH ---
FLOOR AREA 1600X1500

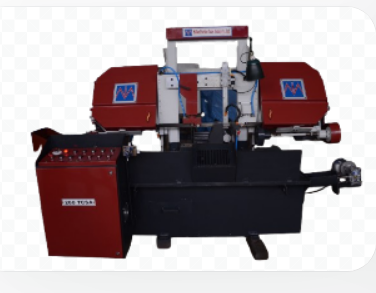

MMT 260 TCA / TCSA

Band Saw Machine

Technical specifications / Cutting Capacity

DIA 260 SQUARE 260x260
CUTTING SPEED 20-100 M/MM BLADE SIZE 4100x34x1
BLADE TENSION HYDRAULIC SAW MOTOR 5 HP
HYDRAULIC MOTOR 1.5 HP COOLANT MOTOR 0.16 HP
CHIP CONVEYOR MOTOR 0.50 HP CHIP CLEANING WIRE BRUSH ---
FLOOR AREA 1600X1500

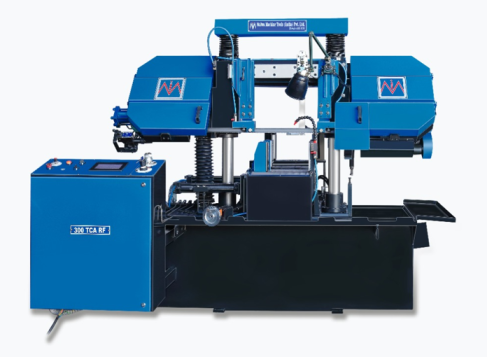

MMT 300 TCA / TCSA

Band Saw Machine

Technical specifications / Cutting Capacity

DIA 300 SQUARE 300x300
CUTTING SPEED 20-100 M/MM BLADE SIZE 4400x34x1
BLADE TENSION HYDRAULIC SAW MOTOR 5 HP
HYDRAULIC MOTOR 1.5 HP COOLANT MOTOR 0.16 HP
CHIP CONVEYOR MOTOR 0.50 HP CHIP CLEANING WIRE BRUSH ---
FLOOR AREA 1800X1500

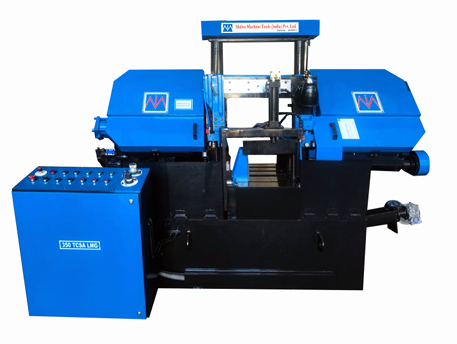

MMT 350 TCA / TCSA

Band Saw Machine

Technical specifications / Cutting Capacity

DIA 350 SQUARE 350x350
CUTTING SPEED 20-100 M/MM BLADE SIZE 5100x41x1.3
BLADE TENSION HYDRAULIC SAW MOTOR 7.5 HP
HYDRAULIC MOTOR 1.5 HP COOLANT MOTOR 0.16 HP
CHIP CONVEYOR MOTOR 0.50 HP CHIP CLEANING WIRE BRUSH ---
FLOOR AREA 1800X1800

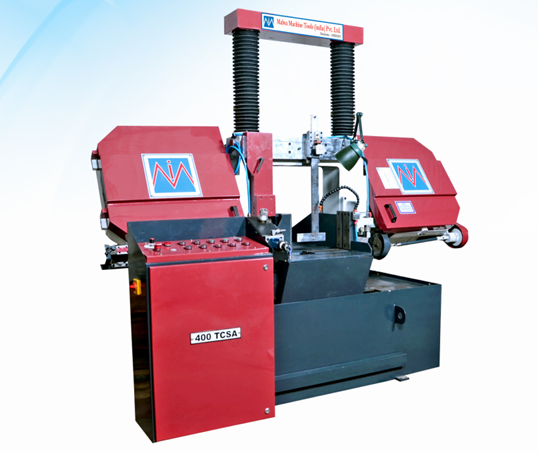

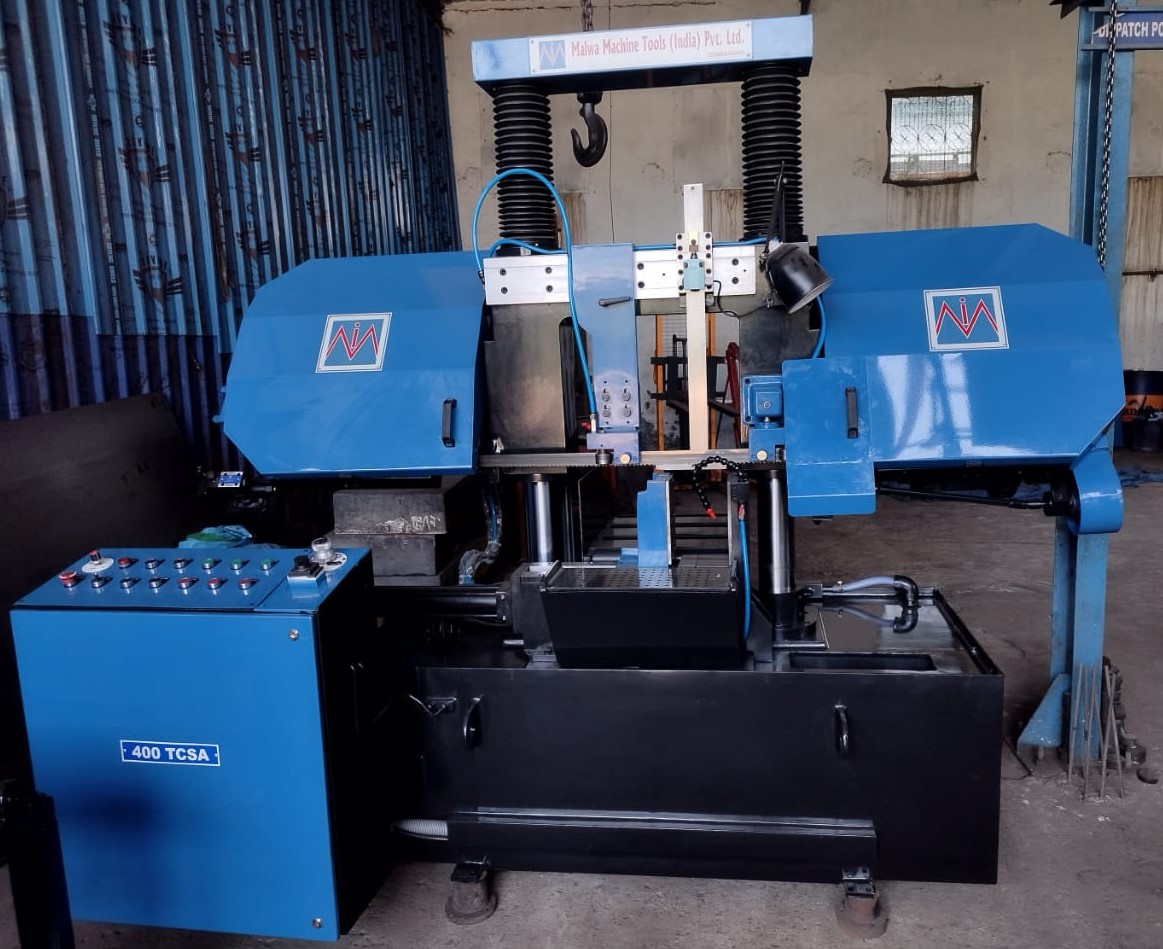

MMT 400 TCA / TCSA

Band Saw Machine

Technical specifications / Cutting Capacity

DIA 400 SQUARE 400x400
CUTTING SPEED 20-100 M/MM BLADE SIZE 5300x41x1.3
BLADE TENSION HYDRAULIC SAW MOTOR 7.5 HP
HYDRAULIC MOTOR 1.5 HP COOLANT MOTOR 0.16 HP
CHIP CONVEYOR MOTOR 0.50 HP CHIP CLEANING WIRE BRUSH ---
FLOOR AREA 1800X1800

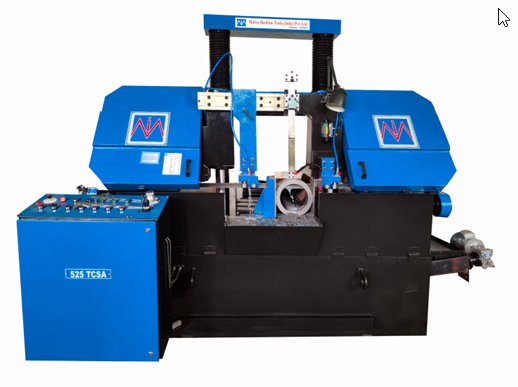

MMT 525 TCSA

Band Saw Machine

Technical specifications / Cutting Capacity

DIA 525 SQUARE 525x525
CUTTING SPEED 20-80 M/MM BLADE SIZE 5800x41x1.3
BLADE TENSION HYDRAULIC SAW MOTOR 7.5 HP
HYDRAULIC MOTOR 1.5 HP COOLANT MOTOR 0.16 HP
CHIP CONVEYOR MOTOR 0.50 HP CHIP CLEANING WIRE BRUSH ---
FLOOR AREA 2000X1900

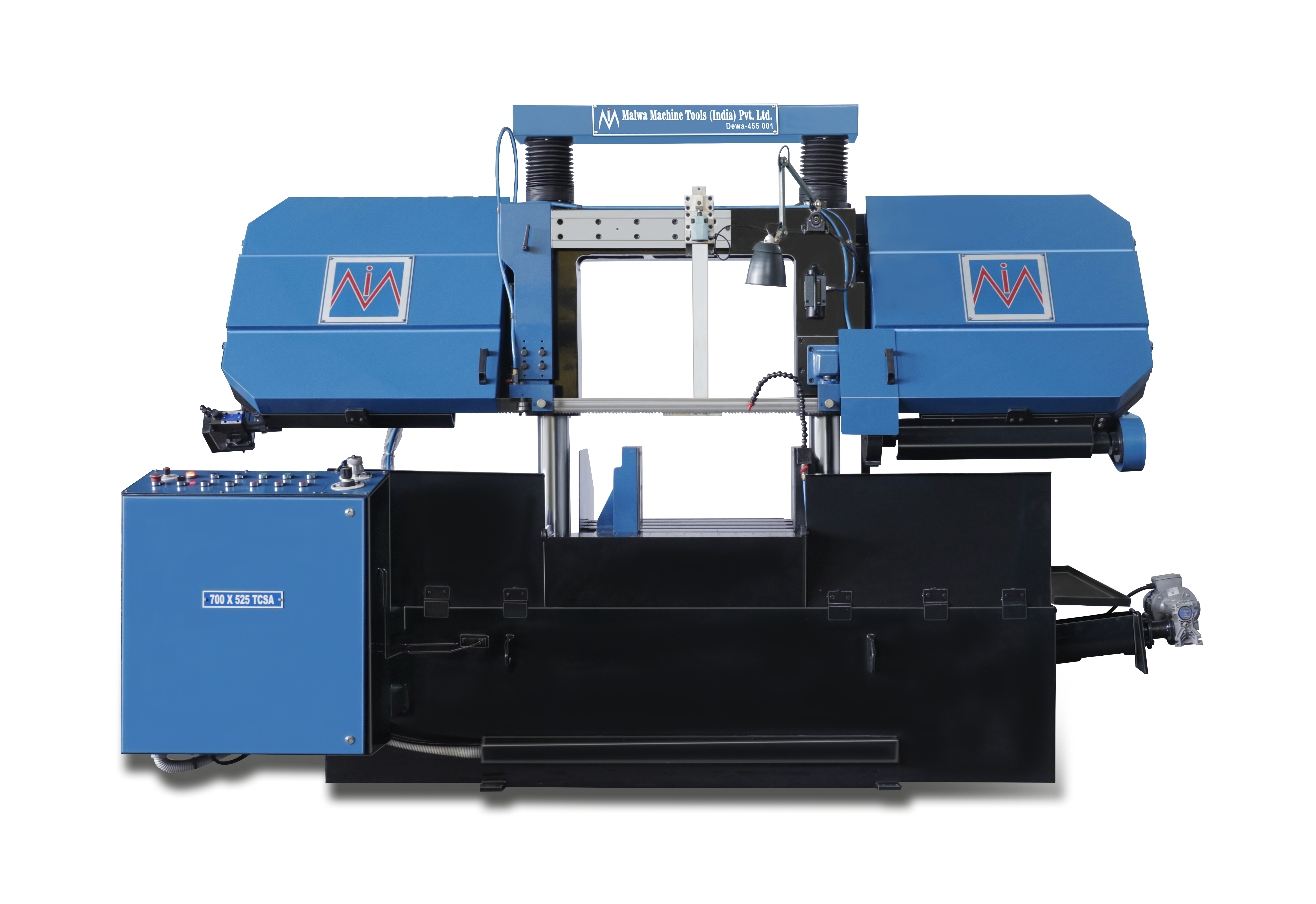

MMT 700 x 525 TCSA

Band Saw Machine

Technical specifications / Cutting Capacity

DIA 525 SQUARE 525x525
RECTANGULAR 700X525 CUTTING SPEED 20-80 M/MM
BLADE SIZE 6700X54X1.6 BLADE TENSION HYDRAULIC
SAW MOTOR 10 HP HYDRAULIC MOTOR 1.5 HP
COOLANT MOTOR 0.16 HP CHIP CONVEYOR MOTOR 0.50 HP
FLOOR AREA 2200X1120 CHIP CLEANING WIRE BRUSH ---

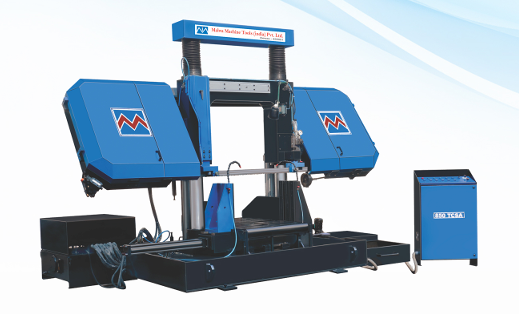

MMT 850 TCSA

Band Saw Machine

Technical specifications / Cutting Capacity

DIA 850 SQUARE 850X850
CUTTING SPEED 20-80M/MM BLADE SIZE 8800X67X1.6
BLADE TENSION HYDRAULIC SAW MOTOR 15 HP
HYDRAULIC MOTOR 2 HP COOLANT MOTOR 0.50 HP
CHIP CONVEYOR MOTOR 0.50 HP FLOOR AREA 2500X1750
CHIP CLEANING WIRE BRUSH ---
MMT 1000 x 2000 TCSA

Band Saw Machine

Technical specifications / Cutting Capacity

DIA 1000 SQUARE 1000X1000
RECTANGULAR 2000X1000 CUTTING SPEED 20-80 M/MM
BLADE TENSION HYDRAULIC SAW MOTOR 20 HP
HYDRAULIC MOTOR 3 HP COOLANT MOTOR 1 HP
CHIP CONVEYOR MOTOR 1 HP CHIP CLEANING WIRE BRUSH ---

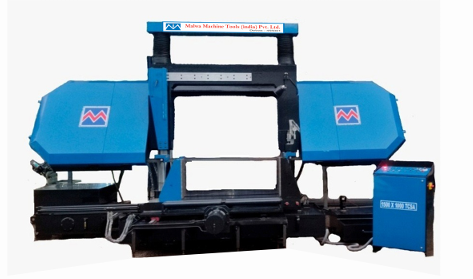

MMT 1500 x 1000 TCSA

Band Saw Machine

Technical specifications / Cutting Capacity

DIA 1000 SQUARE 1000X1000
RECTANGULAR 1000X1500 20-80 M/MM
BLADE SIZE 12600X67X1.6 BLADE TENSION HYDRAULIC
SAW MOTOR 20 HP HYDRAULIC MOTOR 3 HP
COOLANT MOTOR 1 HP CHIP CONVEYOR MOTOR 1 HP
FLOOR AREA 2950X1500 CHIP CLEANING WIRE BRUSH ---
CIRCULAR SAW CSNC 70

Band Saw Machine

Technical specifications / Cutting Capacity

DIA (mm) 70 Cutting Time (In Seconds) 8
No. of Cut Pieces / Hour 450
CIRCULAR SAW CSNC 90

Band Saw Machine

Technical specifications / Cutting Capacity

DIA (mm) 90 Cutting Time (In Seconds) 14
No. of Cut Pieces / Hour 257

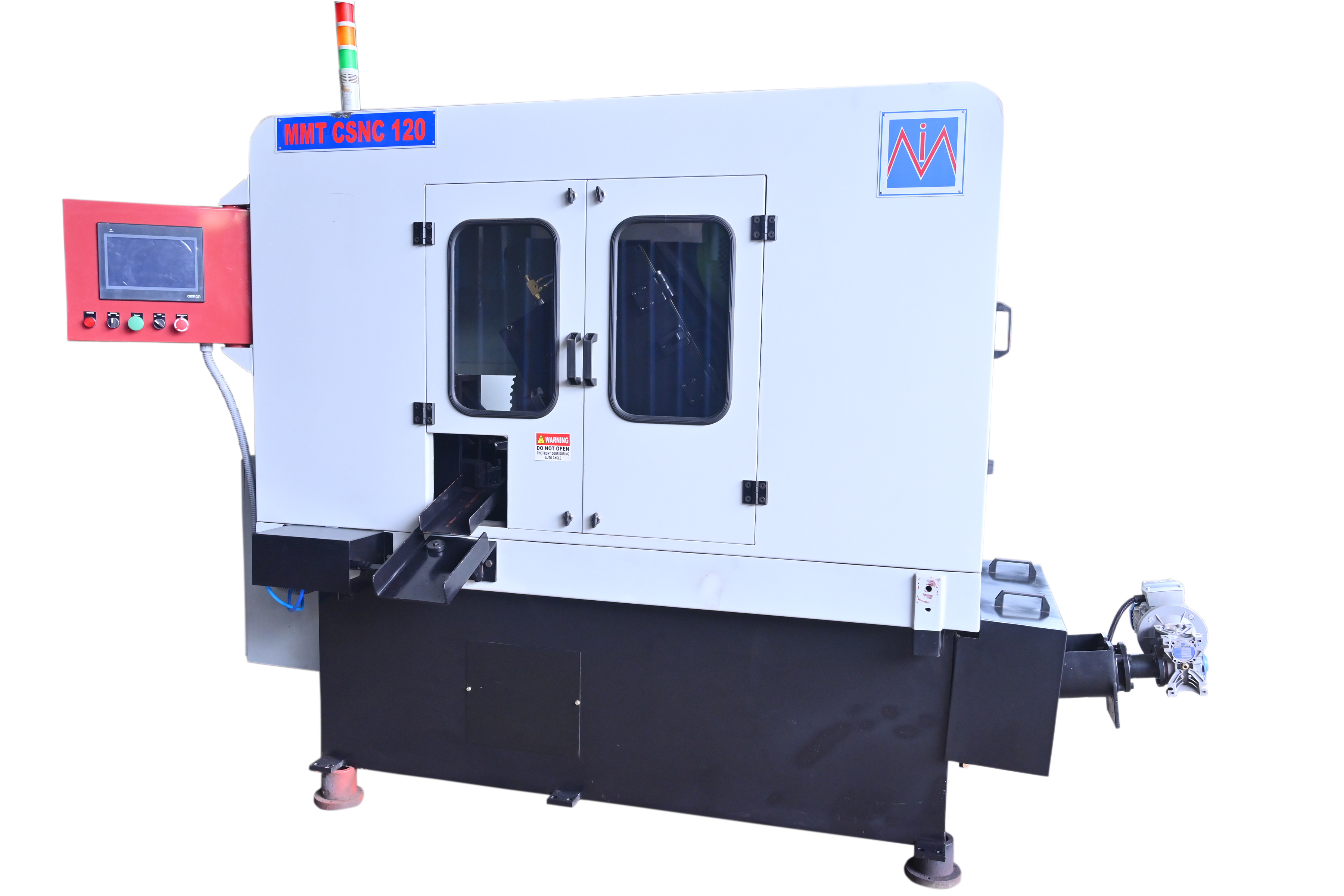

CIRCULAR SAW CSNC 120

Band Saw Machine

Technical specifications / Cutting Capacity

DIA (mm) 120 Cutting Time (In Seconds) 18
No. of Cut Pieces / Hour 200

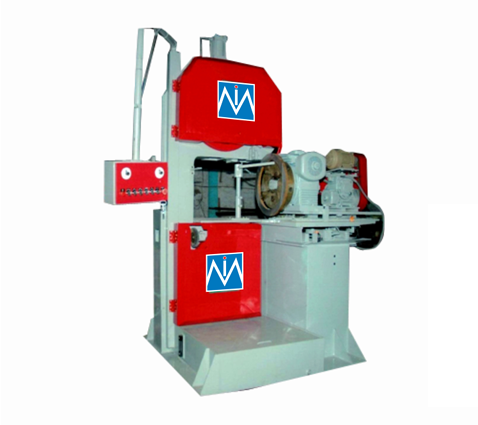

MMT - SPM VERTICAL RING CUTTING MACHINE

Band Saw Machine

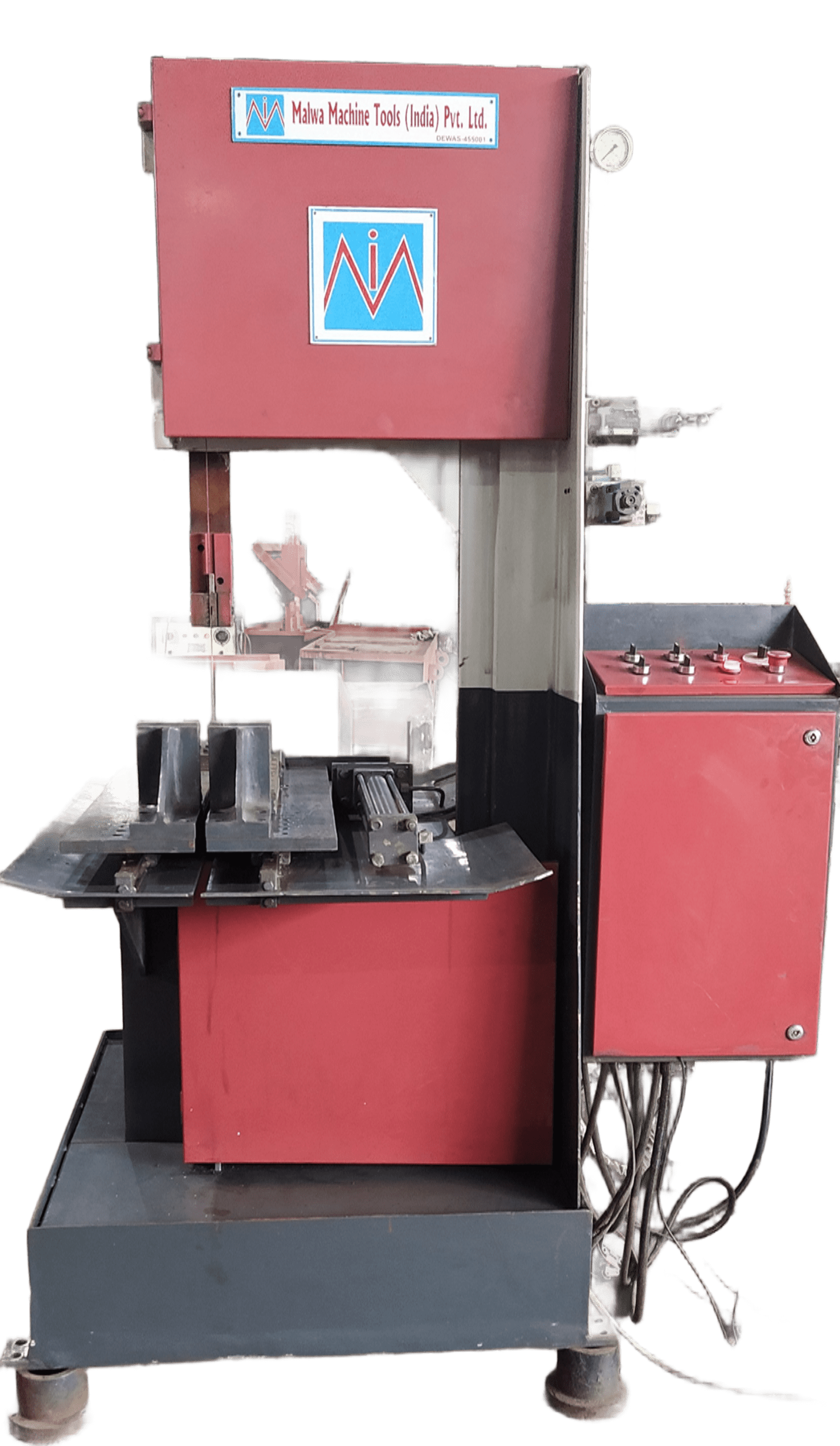

MMT - VERTICAL 400

Vertical - 400

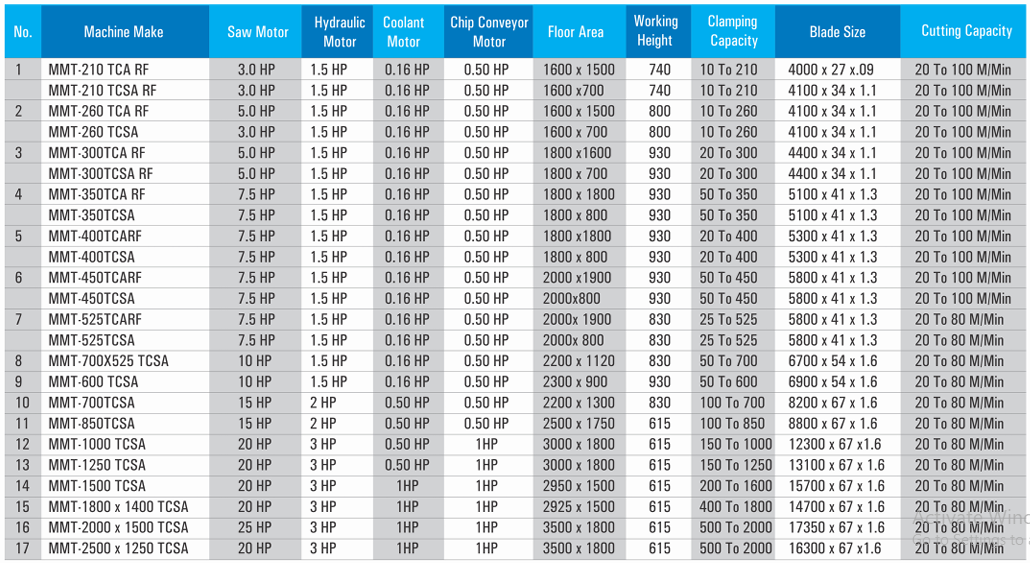

Technical Specifications Band Saw Machine

Technical Specifications

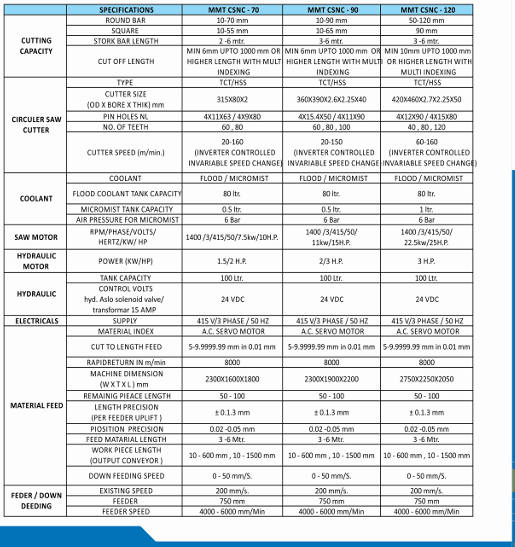

Technical Specifications Circular Saw

Technical Specifications

Our Customers

"Forging Industries!"
CHW Forge Pvt Ltd , Unique Forgings India Pvt Ltd , AIMS Forgings Pvt Ltd , Auto Forging Pvt Ltd , Anandmayee Forgings Pvt Ltd , C S Forging Pvt Ltd , Forge Well Industries , Gaziabad Ispat Udyog Ltd , Happy Steel Pvt Ltd , Him Technoforge Limited , Kisco Castings India Ltd.

"Automobiles!"
Gajra Differential Gears Ltd , Man Industries India Ltd , Caterpillar , Surya Automotive Components.

"Steel Plants"
JSW Bhushan Power & Steel , Embross Metal Pvt Ltd , Bharti Hydro Fitments , Jai Balaji Group , Bihari Lal Ispat Pvt Ltd , Jindal Steel Power Ltd , Vardhman Special Steel , SLR Metaliks Ltd.
